Fort Beach

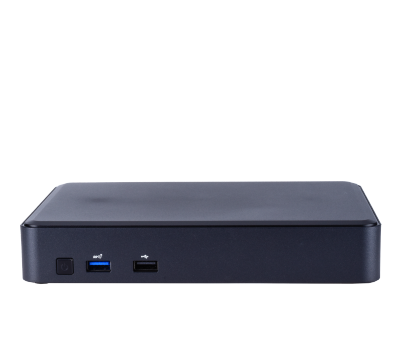

NUC Pro Element Chassis (A/V)

  • Intel® Core™ i5-1135G7
  • Cores 4, Threads 8
  • Intel® Iris™ Xe Graphics
  • Passmark Coming Soon...

Please contact sales if you would like to purchase this unit

Contact Sales

CMCM2FBAV i5 Elk NUC Pro Element Chassis (A/V)

Base CPU Frequency

0.9 GHz

Turbo Boost

4.2 GHz Turbo

Cores & Threads

Cores 4, Threads 8


Intel® Iris™ Xe Graphics

Max Memory



Intel® i219-LM 10/100/1000 Mbps RJ45 Ethernet, 2nd Intel® i211-AT GbE LAN, Bluetooth 5.1

Max Resolution


Video Output

2x HDMI 2.0a


1x USB 3.2 gen 2 Type-A (front), 1x USB 2.0 Type-A (front), 2x USB 3.2 gen 2 Type-A (rear), 2x USB 2.0 Type-A (rear)


Intel® NUC Elements are an entirely new way to design and build Mini PCs. Compute module options along with a series of Intel-designed components, deliver the flexibility of modular computing letting you create the exact systems you want. Intel NUC Elements include compute module and chassis module options, allowing you to develop innovative solutions. Start with a compute module with the exact processor you need and plug it into your choice of chassis module. By transforming how systems can be built and serviced, Intel is once again revolutionizing computing in order to help you succeed. Perfect for many uses from Telehealth to conferencing, even work from home. The Intel NUC Elements let you deliver custom solutions with minimal R&D time.


Fort Beach is available in two options CMCM2FB and the AV optioned CMCM2FBAV. The Video Capture and Audio version features an internal HDMI video capture card with up to 1080P resolution, HDMI passthrough and audio in/out for a I/O-rich solution to capture, stream and record. Compact and powerful, the Intel NUC Compute Element along with Intel NUC Board and Chassis Elements, deliver the flexibility of modular computing—so you can create custom solutions to fit your clients’ exact needs.


Intel® NUC Elements enable you to design systems for video collaboration, distance learning, and other A/V based deployments. Housed in a small quiet chassis that will fit almost anywhere. The NUC 8 Pro can be easily integrated into digital solutions. The two chassis options provide flexibility in usage, and are qualified for 24/7 operation, making it the ideal PC solution for virtual meetings, live streaming workshops and recasting presentations. All modules carry a 3- year warranty, for performance that’s designed to last.

  1.  Intel® Core™ i5-1135G7
    ( i5-1145G7 if vPro is selected)
  2. 8GB LPDDR4X
  3. Dual M.2 22×80 key M slots for PCIe x4 NVMe and SATA SSDs
  4. Internal Wi-Fi and Bluetooth antennas
  5. Kensington lock
  6. USB 3.2 gen 2 Type-A
  7. USB 2.0 Type-A
  8. 12 –24VDC rear jack
  9. 2x HDMI 2.0a
  10. Intel® i219-LM 10/100/1000 Mbps RJ45 Ethernet
  11. 2x USB 3.2 gen 2 Type-A
  12. 2x USB 2.0 Type-A
  13. Intel® i211-AT 10/100/1000 Mbps RJ45 Ethernet
  14. 2x HDMI Pass Thru
  15. 3.5mm Audio In and Out jacks
