NUC 8 Rugged

NUC8CCHKRN Full Now Shipping

  • Intel® Celeron N3350
  • Cores 2, Threads 2
  • Intel® HD Graphics 500
  • Passmark Coming Soon...

Now Shipping

M.2 Secondary Storage Option

This unit can be configured with an additional M.2 storage device. Get the most storage out of your NUC by adding a second storage device to your order.
*See our legal page for our SSD size classification.

Chassis Upgrade Options

This unit can have an I/O extension installed in place of the plate on the front of the unit. This is a great if you need more I/O ports on your unit and do not want to connect external hubs and adapters.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

Extended Support Service*

This unit comes with 1 FREE year of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 3 or 5 years.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Second HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 2.0 Port Accessories

Here is a list of available accessories that connect to a USB 2.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.0 Port Accessories

Here is a list of available accessories that connect to a USB 3.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

NUC8CCHKRN

NUC 8 Rugged

Volume Quote
NUCNUC8CCHKRN NUC 8 Rugged

Base CPU Frequency

1.1 GHz

Turbo Boost

2.4 GHz

Cores & Threads

Cores 2, Threads 2

Graphics

Intel® HD Graphics 500

Max Memory

4 GB LPDDR3

Networking

Wireless-AC 3168

Max Resolution

3840x2160

Video Output

Dual HDMI (1x HDMI 2.0a, 1x HDMI 1.4), with CEC for both ports

I/O

1x USB 3.0 (front), 2x USB 2.0 (rear), 1x USB 3.0 (rear)

FLEXIBLE CUSTOMIZATION

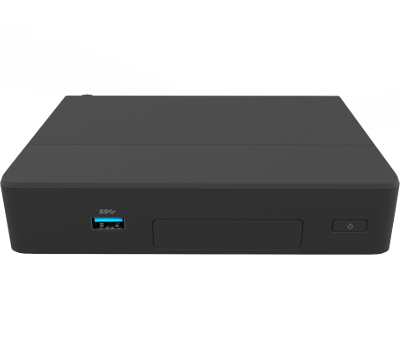

The Intel® NUC 8 Rugged NUC8CCHKR, is a fanless PC kit built with an Intel® Celereon® processor, delivering innovation in a small space for embedded solutions. An Intel® Wireless-AC 3168 card is pre-installed into one of two M.2 slots, leaving the other available for a lightning fast SSD. There are also a plethora of port expansion options via a front panel expansion bay. And the bottom of the chassis is designed to accommodate several mounting options. Finally, whether it’s Windows® 10, Linux, or another OS, these kits are verified to run a wide range of operating systems so you can build the exact solution your clients want.

RUGGED FEATURES

Intel® NUC 8 Rugged is a PC kit that’s small in size but not on toughness or reliability. It features a fanless, ventless design to minimize particle intrusion, so it’s built to survive environments most PCs can’t—from a busy factory floor to a dusty warehouse. And even without a fan, it can operate in temperatures from 0-40˚C to thrive in severe in-the-field conditions.

BUILD EMBEDDED SOLUTIONS

Housed in a small, quiet, fanless chassis that’s slim enough to fit almost anywhere, the NUC 8 Rugged can be easily integrated into digital solutions. It features two full-sized HDMI ports, supports 12V-24V input power, and is qualified for 24/7 operation, making it the ideal PC solution to keep edge analytics, digital signage, or surveillance cameras up and running around the clock. For more deeply embedded or space-constrained solutions there is a motherboard option, NUC8CCHB, with a 4-lane eDP connector and several expansion headers. Both the kit and board carry a 3-year Intel® warranty, for performance that’s designed to last.

  1. Intel® Celeron N3350 processor
  2. 4GB RAM, dual-channel (soldered-down)
  3. 64GB eMMC soldered-down; M.2 2280 key M slot for PCIe x4 NVMe or SATA SSD
  4. Internal 4-lane eDP connector
  5. Intel® Wireless-AC 3168 M.2 card pre-installed w/internal antennas (kit SKUs only)
  6. Consumer Electronics Control (CEC) internal header
  7. Kensington lock support
  8. 1x front USB 3.0
  9. Front panel expansion bay (compliant with daughter cards from 3 rd party functional lids)
  10. Front panel power button
  11. SMA External Dual-Band Antennas (with rubber caps)
  12. 2x rear USB 2.0
  13. 1x rear USB 3.0
  14. Dual HDMI (1x HDMI 2.0a, 1x HDMI 1.4), with built-in CEC for both ports
  15. Intel® i211-AT 10/100/1000 Mbps RJ45 Ethernet
  16. Back panel DC power connector (12–19V)
  17. Cable string relief

Product Brief

Technical Specifications
