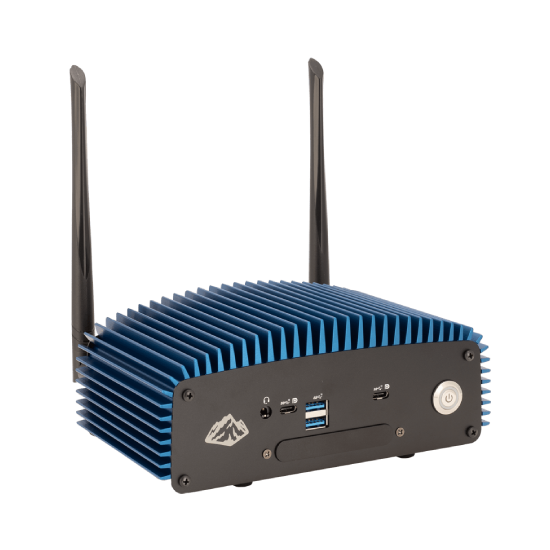

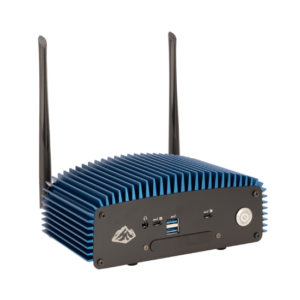

Chimney Rock Porcoolpine
Rugged NUC i5
LLN11CRFv5 Full
- Intel® Core™ i5-1145G7E vPro
- Cores 4, Threads 8
- Intel® Iris® Xe Graphics
- V10 Passmark Score 2296
NUCLLN11CRFv5 Rugged NUC i5
Base CPU Frequency
1.5 Ghz
Turbo Boost
4.1 Ghz
Cores & Threads
Cores 4, Threads 8
Graphics
Intel® Iris® Xe Graphics
Max Memory
64GB
Networking
Max Resolution
3840x2160
Video Output
1x DP 1.4, 2x DP 1.4 via USB 3.2 Gen 2 Type-C, HDMI 2.0a
I/O
4x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C
Stay Cool, Clean and Silent
The LLN11CRF, built with 11th Gen Intel® Core™ embedded processors (vPro available), Intel® Xe Graphics, and fanless “Porcoolpine” chassis, delivers performance and innovation for small spaces and embedded solutions without the use of a blower or fan. Whether you’re creating a digital kiosk, deploying intelligent vending, or refreshing enterprise PCs, the LLN11CRF is built to withstand the test of time with a 7-year commitment on supply. With the option of Intel® Wi-Fi 6 and Bluetooth 5 and the ability to run Windows® 10, or Linux, the LLN11CRF provides the flexibility to build the exact solution your situation needs.
I/O Performance and Flexibility
The LLN11CRF Fanless PC has some new features including, dual Ethernet with speeds up to 2.5 Gbps. Support up to a single 8K display or quad brilliant 4K displays at 60Hz with Chimney Rock Porcoolpine via the HDMI, Display Port and two USB Type-C ports. New on-processor Dual-Video Decode Boxes allow the 11th Gen processors to ingest up to 40 simultaneous video streams at 1080p. AI-Inferencing with built-in Vector Neural Network instructions boost deep learning performance. Porcoolpine allows for additional expansion I/O if more USBs, Ethernet or Serial ports are needed. We can configure to your specific needs. And Porcoolpine is tested for 24/7 operation ensuring solutions that are built to last.
Safe and Secure
With Intel® vPro™ technology you can get ahead of security threats. The built-in hardware-enhanced security means you can keep data and credentials secure, and remote manageability is perfect for installations such as unattended digital kiosks and intelligent vending. This hardware offers Trusted Platform Module (TPM) 2.0 which addresses the growing concern over boot process integrity and offers better data protection. In addition you can physically lock down your LLN11CRF via the built-in Kensington lock or an optional locking VESA mount kit available from Simply NUC.
- Intel® Core™ i5-1145G7E vPro
- 2x DDR4-3200 SODIMMs, 64GB max
- 2x M.2 22×80 for NVMe or SATA SSD
- Audio combo mic in / line out
- 2x USB Type-C ports (USB 3.2 Gen2, DP 1.4)
- 2x front USB 3.2 Gen 2
- RP-SMA Dual-Band Antennas
- Legacy Serial on a DE-9M connector
- 1x 19VDC 65W power supply
- 2x rear USB 3.2 Gen 2
- HDMI 2.0a
- DP 1.4
- 1x 10/100/2500 Mbps RJ45 Ethernet
- 1x 10/100/1000 Mbps RJ45 Ethernet
Product Brief
