NUC13TZBi7

Topaz 3 Motherboards

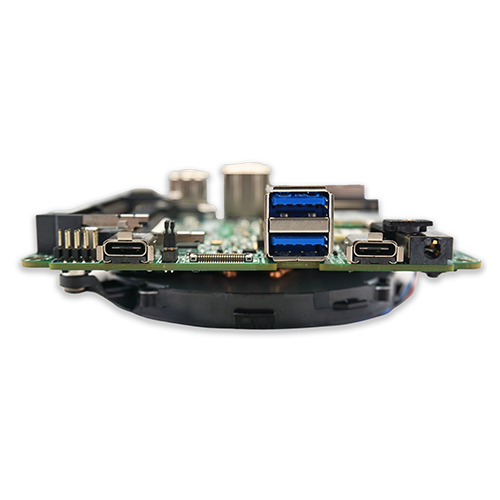

Intel Core i7-1360P, Topaz 3 i7 Board

Regular|Fanned|Made by Simply NUC

The Topaz 3 motherboard harnesses Intel’s latest 13th Gen Raptor Lake 1360P Processor with Iris Xe graphics to provide the most crisp computing experience to date. With up to 64GB of DDR4-3200 memory and up to 8TB of M.2 storage, Topaz 3 has the capabilities you need to evolve your computing experience or corporate infrastructure to the latest and greatest technology available. Intel’s 13th Gen 1360P processor ushers a host of new and improved features including increased core counts and an upgraded Intel® Thread Director to increase both your efficiency and your productivity.



From a home theater to a digital signage kiosk, the Intel® Iris Xe Graphics in Topaz 3 have you covered. With support for up to four 4K displays, you can enjoy crisp visuals from every angle. Take advantage of super-fast networking with dual 2.5Gb LAN ports and onboard TPM 2.0, giving you a robust and secure connection to your home or office network, or ditch the cabling and go wireless with optional Wi-Fi 6E and Bluetooth 5.3 for that sleek setup look, without sacrificing performance and reliability.



Topaz 3 offers a plethora of customization options while maintaining that 4×4 footprint people love, allowing easy embedding into any deployment. The Topaz 3 motherboard with a 13th Gen Intel® Core 1360P Processor is the number one choice for your motherboard needs for both the home and the office, so get yours, today.

Business MotherboardsMotherboards

Form

1.81kg | 13.97 × 12.70 × 12.06 cm
  1. Intel Core i7-1360P
  2. Intel Iris Xe Graphics
  3. 2x DDR4-3200 SODIMMs, 64GB max
  4. M.2 22×80 for NVMe
  5. 2x USB 3.2 type-C gen 2 ports (DP 1.4 DP++ capable)
  6. 2x front USB 3.2 gen 2
  7. Audio combo mic in / line out
  8. 2x 10/100/1000/2500 Mbps RJ45 Ethernet
  9. 1x DP 1.4
  10. 1x HDMI 2.0a
  11. 2x rear USB 3.2 gen 2
  12. 19VDC 90W power supply adapter connector

Specification

Processor

Intel® Core™ i7-1360P Processor 18M Cache, up to 5.00 GHz

Turbo boost

5.0GHz

Cores / threads

Cores 12, Threads 16

Operating temp.

0–40°C Ambient Operating Temp

Graphics

Max Resolution 7680x4320  |  Intel Iris Xe Graphics

Dimensions

1.81kg | 13.97 × 12.70 × 12.06 cm

Memory

64GB

Storage

256GB M.2 PCIe SSD

Networking

Intel WiFi 6E AX210 + Bluetooth 5.3, 2x 2.5Gb Ethernet port

Inputs

4x USB 3.2, 2x USB 3.2 Type-C

Power supply

12-19V input range | 19V 90W power supply included

Certified OS

Windows 10 IoT | Windows 11 64-bit (Pro, Home and IoT) | Linux (Ubuntu)

Certificates & regulations

Safety

IEC 62368-1 | EN 62368-1 | CAN/CSA 62368-1

EMC / RF

FCC CFR Title 47, Chapter I, Part 15, Subpart B | EN 55024 | EN 55032 | EN 55035 | CISPR 32 | ICES-003 | ETSI EN.301 489-1 | ETSI EN.301 489-17

Configuration

Customise your NUC with the options below and they will all come pre-installed.

Product Build Options
+€0.00

This unit comes with one 4 GB DDR4 RAM card. Upgrade now and get a second card to increase your RAM as high as 32 GB at a discounted price.

Memory (RAM) *

+€0.00

This unit comes pre-installed with a 256GB Gen4 PCIe M.2 SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

M.2 Gen4 Storage Option *

+€0.00

Operating System *

+€0.00

AX210 Non-vPro Wifi Option *

+€0.00

Power Supply *

+€0.00

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping.

Extended Support Service *

+€0.00

HDMI Port Accessories

+€0.00

DP Port Accessories

+€0.00

USB Type-C Port Accessories

+€0.00

USB 2.0 Port Accessories

+€0.00

USB 3.2 Port Accessories

+€0.00

Mouse and Keyboard Pack

+€0.00

USB OS Restore Key
