NUC24OXGv9- Intel® Core™ i9-13900H
- Cores 14, Threads 20
- Intel® Iris® Xe Graphics
- Passmark Coming Soon...
Contact Sales
NUC24OXGv9 Onyx Pro
Base CPU Frequency
Turbo Boost
5.4GHz Turbo
Cores & Threads
Cores 14, Threads 20
Graphics
Intel® Iris® Xe Graphics
Max Memory
96GB
Networking
MediaTek WiFI 6E MT7922 + BT 5.2, 2x Intel Converged Network 10G SFP+ ports, 2x Intel 2.5Gb LAN ports
Max Resolution
7680 × 4320
Video Output
1x HDMI 2.0, 2x USB 4 Type-C (Alt-DP)
I/O
2x USB 4 Type-C, 3x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A, 1x 3.5mm stereo headset jack

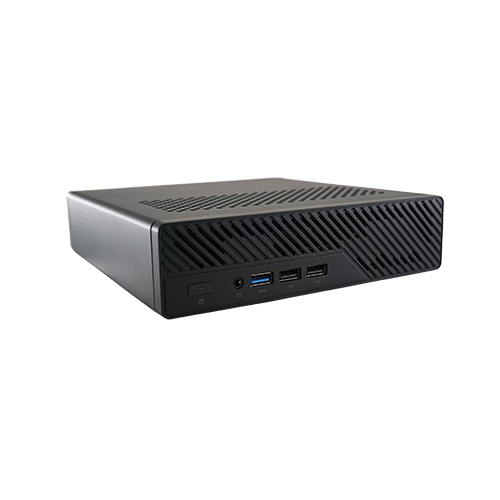

VERSATILE MINI WORKSTATION
The Onyx Pro provides a Mini Workstation powered by the Intel Core i9 vPRO “Raptor Lake” 13900H CPU, Intel IRIS Xe™ integrated graphics and optional graphics cards (Nvidia T1000, Radeon Pro WX3200 and Intel Arc A40) within a compact form factor. Utilizing the low profile PCIe x 16 slot enables many customer applications such as video-capture, AI, CAD Design, Complex Modeling, Large Database Analysis and Simulation just to name a few. If additional storage or I/O is desired you can take advantage of the one M.2 / 2280 PCIe Gen4 slot, two M.2 / 2280 PCIe Gen3 slots and multiple connectivity options including HDMI 2.0, two USB4 Type-C/Alt DP, three USB 3.2 Type-A and two USB2.0 Type-A ports.
AI-READY POWER FOR VERSATILE APPLICATIONS
Whether it’s addressing performance-intensive tasks, diving into AI inferencing with support of both software and hardware acceleration, engaging in machine learning, being used as a powerful Mini Workstation or conducting data analysis, the Onyx Pro seamlessly handles a variety of applications. The harmonious collaboration between the Intel Core i9 vPRO “Raptor Lake” CPU, Intel IRIS Xe™ integrated graphics and nVidia GPUs makes complex modeling, 3D design, and large database analysis effortlessly achievable. Support for quad 4K monitors running at up to 60Hz ensures a visually stunning experience for multitasking, excelling in E-CAD / M-CAD design, modeling, and simulation.
ADVANCED NETWORKING
Experience the advanced network capabilities available in the Onyx Pro with (x2) 10GbE SFP+ fiber ports and two 2.5GbE ports to support your high throughput and integrated router needs. SFP+ enables fiber, video-in and R45 connections. Additionally a low profile Networking PCIe card could be added to provide an additional 3 extra ports or for advanced networking supporting a security device. Transform your computing journey with the Onyx Pro – embrace innovation, harness unparalleled power and networking, and pioneer the next generation of workstation platform computing.
- Intel® Core™ i9-13900H
- Intel® Iris® Xe Graphics
- Dual Channel DDR5-5200 SODIMMs, max 96GB
- 1x M.2 2280 NVMe SSD slot
- 2x M.2 2280 NVMe SSD slot
- MediaTek WiFI 6E MT7922 + BT 5.2
- 1x 3.5mm stereo headset jack

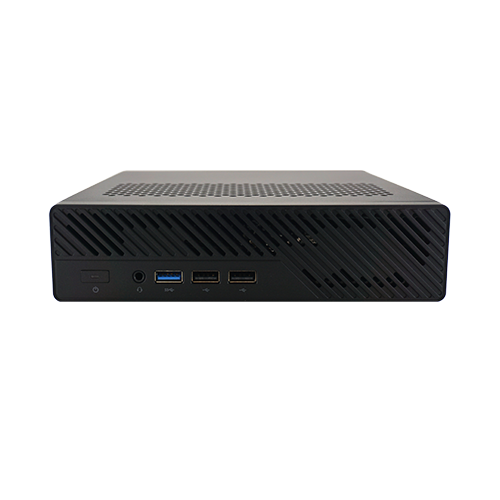

- 1x Front USB 3.2 Gen2 Type-A
- 2x Front USB 2.0 Type-A

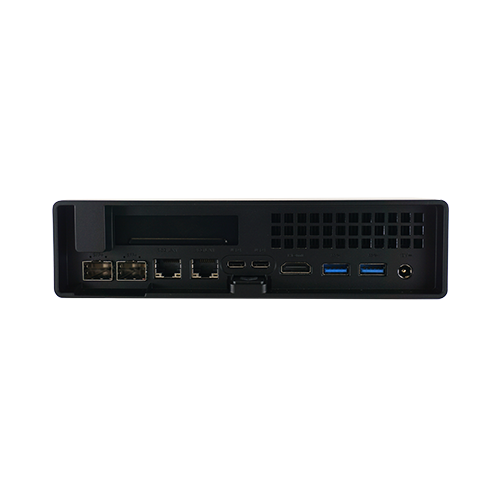

- 2x Intel Converged Network 10G SFP+ ports
- 2x Intel 2.5Gb LAN
- 2x Rear USB 4 Type-C
- 1x Rear HDMI 2.0
- 2x Rear USB 3.2 Gen2 Type-A
- 19VDC, 180W Power Supply
