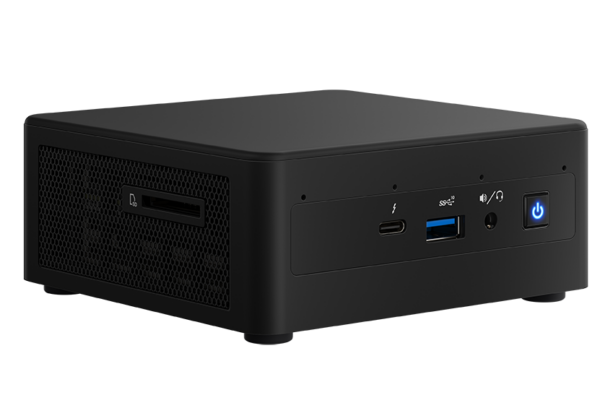

NUC 11 Performance i7

NUC11PAHi7 Full Now Shipping

  • Intel® Core™ i7-1165G7
  • Cores 4, Threads 8
  • Intel® Iris™ Xe Graphics
  • V10 Passmark Score 3341

Now Shipping

Memory (RAM)*

This unit comes with one 4 GB DDR4 RAM card. Upgrade now and get a second card to increase your RAM as high as 32 GB at a discounted price.

M.2 Storage Option*

This unit comes pre-installed with a 128GB M.2 NVMe PCIe SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

2.5″ Secondary Storage Option

This unit can be configured with an additional 2.5″ storage device. Get the most storage out of your NUC by adding a second storage device to your order.
*See our legal page for our SSD size classification.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

NUC Lid Options

These are lid replacements for an 8th Generation NUC unit. We offer many functional upgrade lids.

Extended Support Service*

This unit comes with 1 FREE year of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 3 or 5 years.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

mDP Port Accessories

Here is a list of available accessories that connect to a mDP port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Thunderbolt Port Accessories

Here is a list of available accessories that connect to a Thunderbolt port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.2 Port Accessories

Here is a list of available accessories that connect to a USB 3.2 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

NUC11PAHi7

NUC 11 Performance i7

Volume Quote
NUCNUC11PAHi7 NUC 11 Performance i7

Base CPU Frequency

2.8 GHz

Turbo Boost

4.7 GHz Turbo

Cores & Threads

Cores 4, Threads 8

Graphics

Intel® Iris™ Xe Graphics

Max Memory

64GB

Networking

Intel® Wireless-AX 201 + Bluetooth 5, 2.5Gb Ethernet

Max Resolution

7680x4320

Video Output

HDMI 2.0b, mDP 1.4, 2x DP 1.4 via Type-C

I/O

2x Thunderbolt 3, 4x USB 3.1 Gen2

HIGH SPEED PERFORMANCE FOR HOME AND OFFICE

Finish your work and then play arcade games, stream movies and music, and quick-charge phones with the ultra-responsive 11 Gen Intel® Performance NUC with support for up to 64 GB of high-speed DDR4 RAM. Panther Canyon is small enough to move around the office and house. These Mini PCs deliver outsized performance with a full range of i7, i5, and i3, 11th Gen Intel® Core(TM) processors and amazing Intel® Iris® Xe graphics.

FEATURE RICH FOR VERSATILITY

With its modern design and innovative features, the Panther Canyon is built for the new age of small-compute innovation. At home or on the road, connect to any screen and every peripheral with ten ports and slots. Combine this with Iris® Xe graphics, Thunderbolt(TM) 3, mini DisplayPort, and HDMI capability for the optimal visual experience. Talk to Amazon Alexa from across the room and multitask on up to four screens. The charging lid on some systems can even be used to quickly and wirelessly charge phones, earbuds, and other devices.

EFFICIENCY BY DESIGN

The Panther Canyon delivers a unique combination of commanding performance, immersive graphics, fast and flexible connectivity, and innovations like wireless charging, remote control, and voice control. Finally, the pint-sized, eye-catching, do-everything home and office computer has arrived.

  1. Intel® Core™ i7-1165G7
  2. Intel® Iris™ Xe Graphics
  3. Dual channel DDR4-3200 SODIMMs max 64GB
  4. 1x M.2 SSD slot
  5. Intel® Wi-Fi 6 AX201 + Bluetooth 5
  6. Beam-forming, far-field, quad-mic array, with Alexa support
  7. 2x Thunderbolt 3 ports
  8. 3x USB 3.1 Gen2 ports
  9. 3.5mm front stereo headset
  10. SDXC slot
  11. 19V DC input
  12. 1x Mini DisplayPort 1.4 ports
  13. Intel® i225-V 10/100/1000/2500 Mbps RJ45 Ethernet
  14. 1x HDMI 2.0b
  15. Kensington lock (on opposite side)

Product Brief

Technical Specifications
